Packaging Machinery Manufacturers Techflow Pack Brand

Product details of the packaging machinery manufacturers

Quick Detail

packaging machinery manufacturers is a high-quality food machine that is in line with national food hygiene standards. It is made of selected high-quality stainless steel. It has advantages such as stable running, quick response, strong corrosion resistance, and long service life. It is also energy-saving, safe and eco-friendly. Techflow Pack has experienced design team to design the appearance of packaging machinery manufacturers. a team of skilled quality controllers handles the quality checks that are conducted to examine and ensure the flawlessness of the offered products. Excellent in performance, high in quality and easy in operation, packaging machinery manufacturers can be used in the production, processing, and packaging of various types of food. packaging machinery manufacturers plays an important role for the development of Techflow Pack.

Product Introduction

Techflow Pack's packaging machinery manufacturers has the following advantages over other similar products.

Product Description

Robot Palletizer is the product of the organic combination of machinery and computer program. It provides higher production efficiency for modern production. Robot palletizers have a wide range of applications in the palletizing industry. The palletizing robot greatly saves labor and space. The palletizing robot operates flexibly, accurately, quickly and efficiently, with high stability and high efficiency.

Applications

The palletizing robot can be integrated in any production line to provide intelligence, robotization and networking for the production site, and can realize palletizing logistics for a variety of operations in the beer, beverage and food industries, and is widely used in cartons, plastic boxes, bottles, bags, barrels, film package products and filling products. It is equipped with a three-in-one filling line, etc., and palletizes all kinds of bottles, cans, bags and bags. The automatic operation of the palletizer is divided into automatic box feeding, box transfer, arrangement, stacking, pile moving, stacking, feeding, stacking, stacking, and stacking.

a1 (10)

a2 (10)

a3 (10)

Work flow

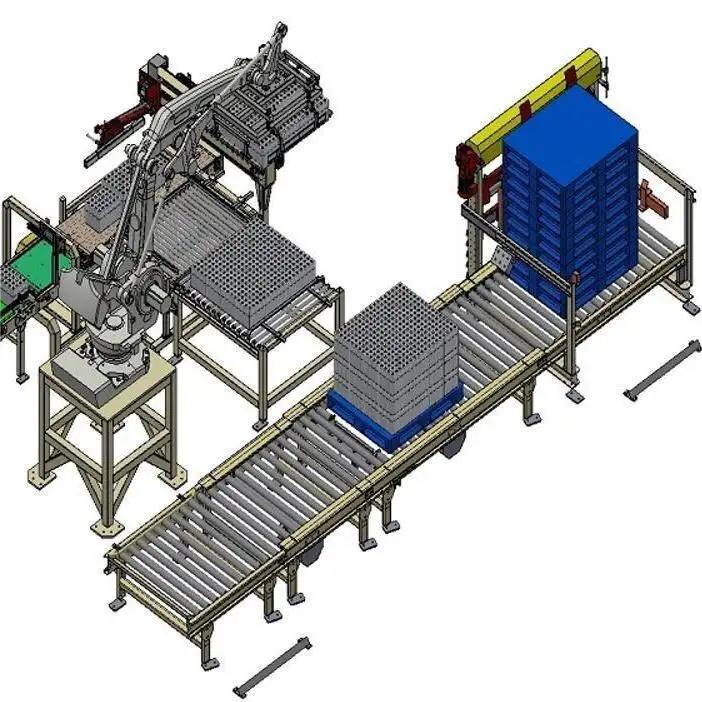

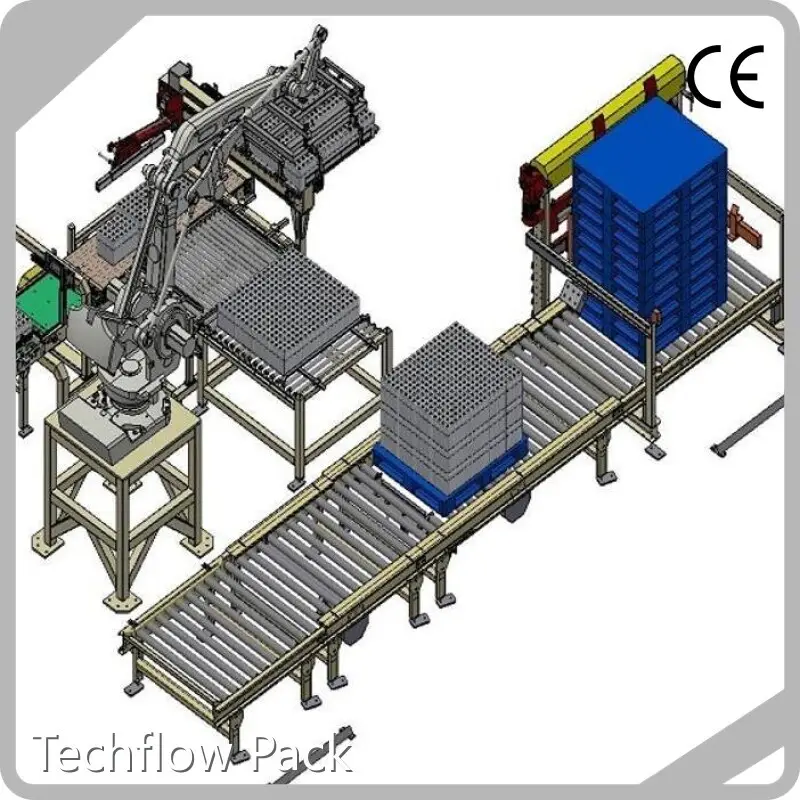

Before robot palletizer system working, forklift places 10 empty pallets on the pallet dispenser; the pallet dispenser will send the empty pallet to the stacking position, products comes to the accelerate belt conveyor which will expand the distance between each product through the speed difference; the steering system will turn the direction of product according to the arrangements; the arrangement buffer system will arrange the products in order; the robot will grab the complete layer of product and place it on the pallet in order, repeat the actions, until finishing palletizing the complete pallet, then the roller conveyor will transport the complete pallet to the position for forklift.

Accelerating belt line → Steering mechanism → Arrangement and buffer system → Robot → Gripping platform → Lifting platform →  Finish ← Roller conveyor ← Pallet supply system

Technical Features 01

Box-steering mechanism: when the box steers, the speed of the bottom conveyor line is the same with that of the rear part of accelerating belt line; when the box needs to be rotated 90°, the cylinder will stretch out quickly to block the one side of the box.

Technical Features 02

Gripper head : the main frame material is aluminum alloy and SUS304.

Technical Features 03

Arrangement and buffer system: boxes are transferred to this system through the roller conveyor. In order to better meet customers' requirements for arrangement, an adjustable stop bar is installed under the system, which can be freely adjusted by hand and provide various modes of arrangement, thereby increasing the efficiency.

Technical Features 04

Roller conveyor line: its main frame is the varnished carbon steel. It consists of heavy-load roller conveyor line, which is used to convey empty pallets and full stack of products to workstation of the forklift.

Company Information

Depending on years of development, 上海利湃机械设备有限公司 has grown from a small producer to one of the most competitive manufacturers of packaging machinery manufacturers. We adopt world-advanced technology when manufacturing packaging machinery manufacturers. We work with authorities at all levels to promote energy efficiency and renewable energy alternatives in the introduction of regulations, legislation and new investments.
Welcome to visit Techflow Pack's website! If you have any interest in Auger Filler,Pouch Case Packer,Case Packer/Carton Packaging Machine,Case Erector/Carton Erector,Packing Line, and want to know more information such as specifications and types, please contact us quickly. We are dedicated to providing you with quality service!
