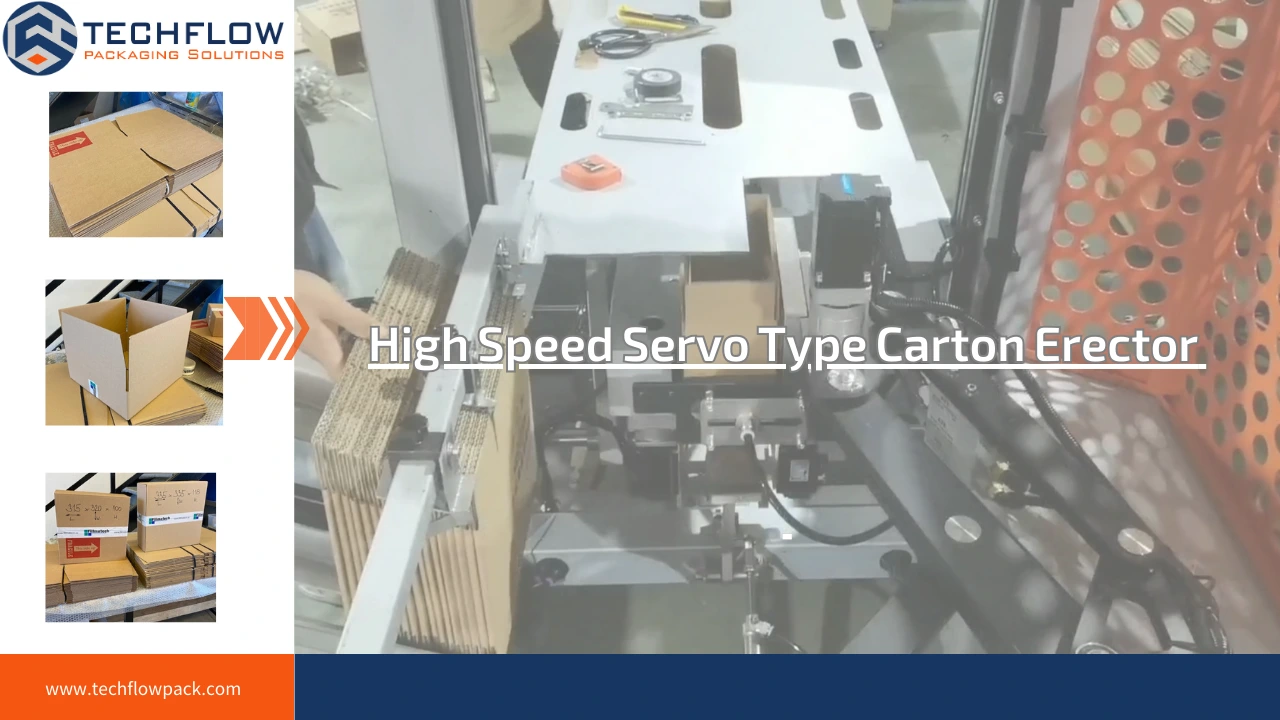

New Designed Automatic High Speed Servo Case Erector

Automatic high speed servo case erector is a professional carton automatic packaging equipment integrating carton picking, forming, folding and bottom sealing. It is equipped with safety devices that alarm in advance for material shortage and automatic shutdown without materials. It is greatly convenient for operation, management and reduction of production personnel and labor intensity, and is an indispensable equipment for automated large-scale production.



Machine Model: TFP-CR30

Sealing type: Adhesive tape

Machine capacity: Max30pcs/min

Indicative price: $9,000-15,000

Tray size: (200-500)x(150-400)x(120-350)mm(customized)

Configuration: INOVANCE+GPG+SCHNEIDER

Inquiry

    oops...!

    no product data.

    Go to homepage
    Write a Review

    Servo Carton Erector

    Product Description

    Automatic high speed servo case erector is a professional carton automatic packaging equipment integrating carton picking, forming, folding and bottom sealing. It is equipped with safety devices that alarm in advance for material shortage and automatic shutdown without materials. This Servo case erector is greatly convenient for operation, management and reduction of production personnel and labor intensity, and is an indispensable equipment for automated large-scale production.

    未标题-1 (8)

    Product Specifications

    Techflowpack is committed to helping customers achieve more optimized carton erecting and packaging solutions.

    Machine Model TFP-CR30
    Carton sizes L:200-600;W:150-450;H:100-350mm
    Production capacity Max 30pcs/min
    Air Source  0.4-0.7Mpa, 150NL/min
    Power Supply 380/220V, 50-60Hz,2.1Kw
    Machine dimension 2845x2000x1400mm
    Total weight 600kg
    Main frame  carbon steel with painting

    Product Application

    Auto high speed case erector also called auto high Speed servo carton erector, is mainly used for erecting and forming of RSC magazines. Adopting PLC control, complete the magazines sucking, openning, forming, folding  and bottom sealing to greatly convenient operation.It has been widely used in food, medicine, beverage, tobacco,daily chemical, electronics industries.


    New Designed Automatic High Speed Servo Case Erector 7
    图片2 (2)
    New Designed Automatic High Speed Servo Case Erector 9

    PRODUCT STRENGTH

    Products Advantages

    Compared with the traditional case erector, the high-speed servo carton erector adopts full servo control, can store a variety of case opening sizes, precise parameter control and more convenient product switching.

    High Quality
    We have a stable supply chain with high quality and more than 10 years of cooperation, such as: SIEMENS/SEW/SICK.The main members of the design team all graduated from the domestic first-class university majoring in mechanical automation, and the average experience is more than 10 years
    Reasonable Prices
    We know the carton erector machine market well, without compromising on after-sales service, we offer reasonable and competitive price quotations, and OEM/ODM and regional agency are also our business scope with more attractive price
    Strict QC Team
    Whether it is internal processing parts or outsourcing processing parts must be strictly controlled by the quality inspection department, so that the large error is directly scrapped, and the large tolerance is not assembled.
    Humanized Design
    The wiring adopts a quick-plug mechanism for easy on-site installation. The control part is embedded with remote control communication module, which is easy to update or reset the PLC system at a later stage.

    WHY CHOOSE US?

    Product Characteristics

    This High-speed servo case erector adopts bionic mechanical arm to make case opening and molding smoother and more efficient. Full servo drive control can realize precise control of parameters, for some special shape cartons which are difficult to be opened by traditional carton erector, such as flat carton, narrow carton, servo carton erector can be solved perfectly.

    New Designed Automatic High Speed Servo Case Erector 10
    Adopting two servo motors to drive the belts on both sides to synchronize the operation of the belts on both sides to ensure that the cartons are formed straight and without wrinkles.
    New Designed Automatic High Speed Servo Case Erector 11
    The cardboard storage chute is designed as a powerless box bank, replenishing cartons at any time without downtime.
    New Designed Automatic High Speed Servo Case Erector 12
    The open structure of the two sides of the box makes it easier for the operator to see and operate.The whole machine is highly automated with a robot, reducing labour.
    24 (14)

    Product Details

    Full Servo Control
    Mechnical Arm Design
    Bionic servo robot arm for more accurate carton forming unpacking
    IMG_20211130_154421
    Unpowered Magazines Storage
    Inclined, non-powered magazine design allows for replenishment of cartons at any time without downtime.
    IMG_20211130_154746
    Full Servo Control
    Four servo motors are used to drive the belts on both sides of the box, which ensures that the belts on both sides run synchronously and that the cartons forming are smooth.
    New Designed Automatic High Speed Servo Case Erector 17

    Servo Case Erector Machine

    Configuration list

    This Servo Case Erector is based on a regular production schedule and a relatively stable market supply and demand. Under special circumstances, some brands will be replaced with other brands of equivalent quality. The lowest prices in the indicated prices are based on domestic market configurations.

    PLC INOVANCE/SIEMENS
    HMI INOVANCE/SIEMENS
    Main Motor GPG/SEW
    Photo Sensor SICK
    Electronic parts Schneider
    Pneumatic parts Airtac/SMC
    Main frame Carbon steel with painting
