Product details of the bottle depalletizer
Product Introduction
Our bottle depalletizer are in various style, including bottle depalletizer. The usability and service life of this product are ensured by our qualified QC team. 上海利湃机械设备有限公司 has a very stable and huge sales network.
Product Description

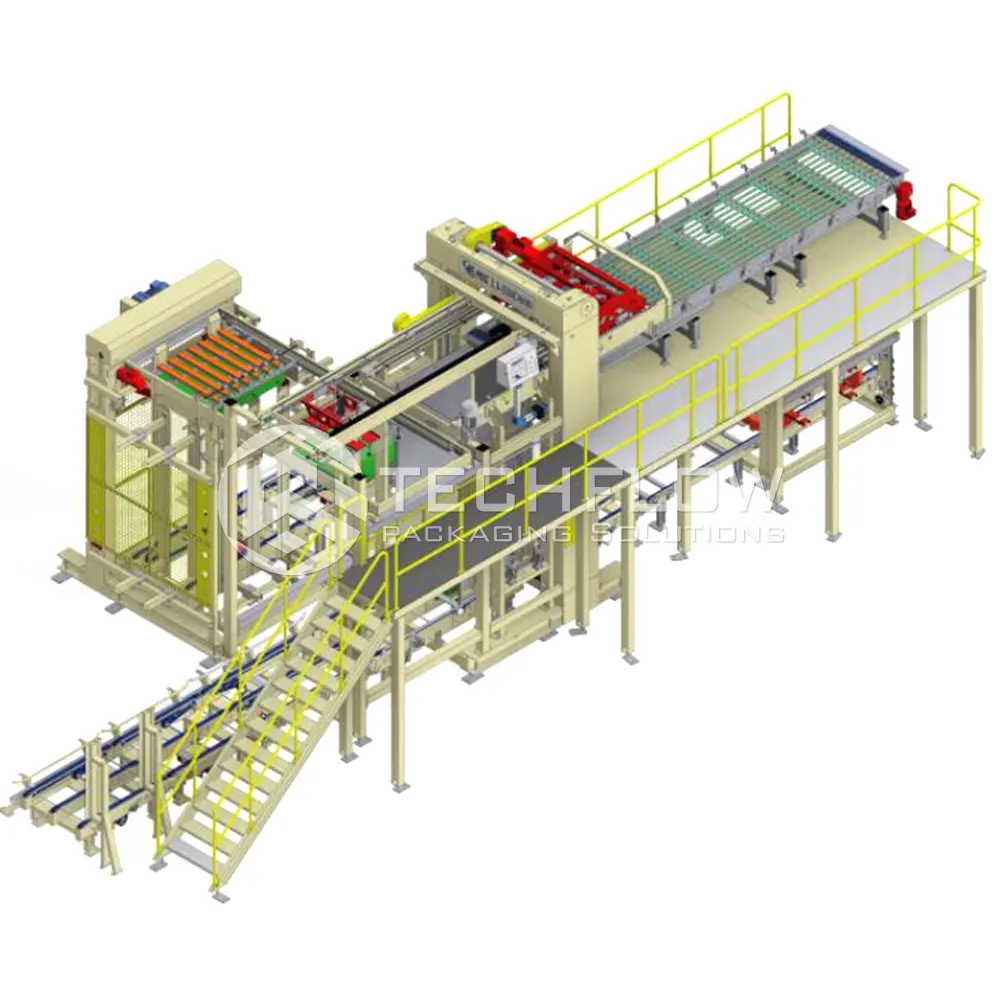

Forklift transport the complete stack of empty bottles to the full pallet conveyor of this depalletizer, then the conveyor transport the full stack to the main lifting platform, the lifting platform lift up the full stack layer by layer; The interlayer collecting structure suck the interlayer and move it out of the stack, after that, the interlayer collecting mechanism will collect the interlayers and lift it down to conveyor when the interlayers is stored as one stack; the clamp of bottle grips the whole layer of bottles and moves them to empty bottle conveyors, repeat these actions until the all the layers are moved to the conveyor, then the lifting platform will down and output the empty pallet to the pallet magazine.
Technical Features 01
Pallet magazine: Main body is 150*150 H type steel，stand column is welded by 18# groove steel and painted( the same with the car painting process). The lifting of this mechanism adopts the helical gear motor with brake, when it starts to lift and stop, it is much stable and precise; the lifting chain is RS80 double raw. The clamp mechanisms of two side are drove by cylinder.
Technical Features 02
Main machine of bottle depalletizer: The main lifting motor is horizontal helical gear motor with brake, so that the lifting action will be stable and precise. The fixing parts are adjustable, so that adjusting the levelness and perpendicularity. The movable doors of two sides are made of square tube welding with 3T stainless steel, which is drove by the cylinders.
Technical Features 03

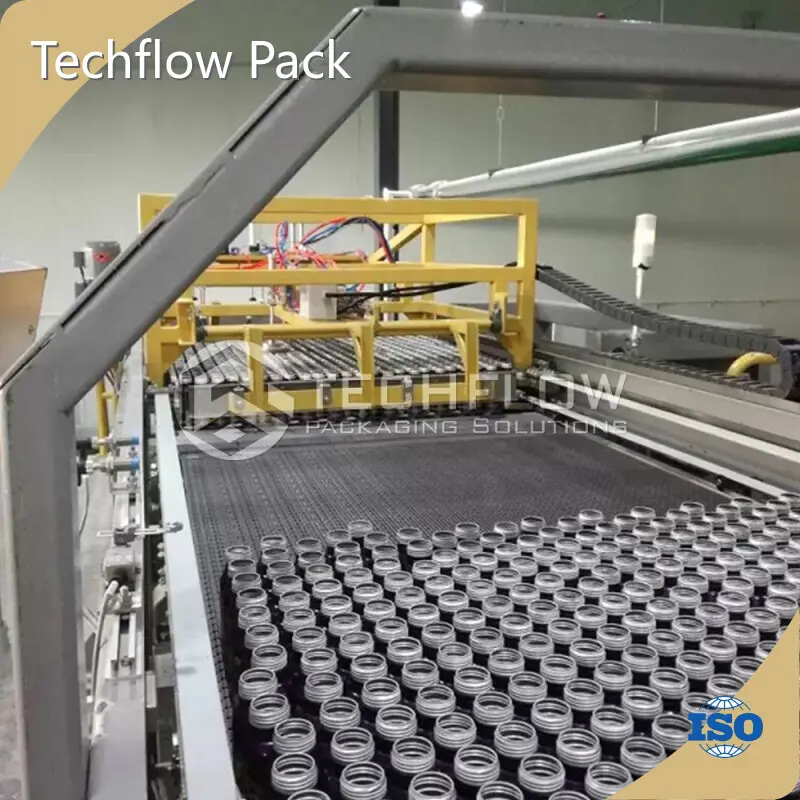

The clamp of bottle: 4 groups of cylinders work together to clamp the bottles, this structure are customized according the bottle shape, which is good for stability of running.
Technical Features 04
The main lifting structure is drove by the horizontal helical gear motor with brake; the lifting actions will be stable and precise. The fixing part of the main lifting structure is adjustable, so that we can adjust the levelness and perpendicularity.
Technical Parameters
|
Model |
TFP-HDP400 |
|
Production capacity |
Max60,000pcs/min |
|
Application |
Pet/LDPE/Glass Bottles/Cans/bottles |
|
Power supply |
16Kw 380V 50-60Hz 3Phase (customized) |
|
Air supply |
0.8Mpa, 1000L/min |
|
Machine Weight |
Approx. 12000kgs |
|
Machine Dimension |
13000x3300x4200mm |
Basic Configuration
|
No |
Items |
Brand |
|
1 |
Motor with brake |
SEW+OMT |
|
2 |
Servo motor |
Panasonic/SIEMENS |
|
2 |
PLC |
SIEMENS |
|
3 |
HMI |
SIEMENS |
|
4 |
Photo Sensor |
SICK |
|
5 |
Electronic parts |
Schneider |
|
6 |
Pneumatic parts |
SMC/ FESTO |
|
7 |
Inverter |
Danfoss |
