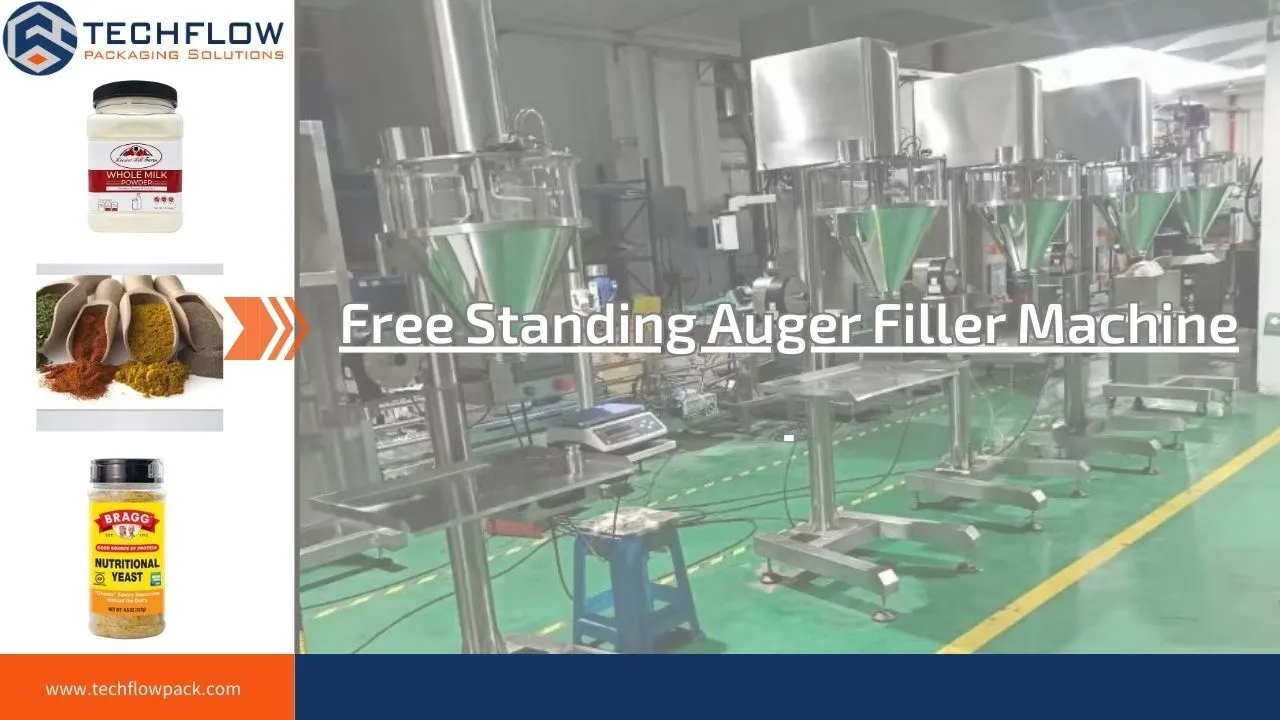

Semi-automatic Free Standing Auger Filling Machine

Screw metering principle

Auger Filler Head is mainly composed of drive motor, hopper, screw, shaft, agitator, screw mounting sleeve, etc. The rotary feeding of the screw is powered by the servo motor, and the control signal of the number of rotation turns of the screw is calculated by the PLC.

According to the set weight value and material density to obtain the corresponding pulse signal, and then transmitted to the servo motor drive, and then driven by the servo drive according to the input signal of the PLC to rotate the corresponding number of turns, and drive the screw rotation by the synchronous belt to complete each filling feeding process, which can accurately control the number of rotation turns of the screw, thereby improving the accuracy of feeding.

Technical Features 01

This Free Standing Auger filler combined the European Standard with China manufacturing advantage;The whole machine is made of stainless steel 304.

Technical Features 02

English is displayed in touch screen or put customized programming in the touch screen;The machine is designed in term of National "QS" and "GMP"; Could store 10 kinds of working parameters in the machine.

Technical Features 03

Weight feedback and proportion track get rid of the shortage of variable packaged weight for various proportion of different material.

Technical Features 04

For the dusty material , we can add a vacuum device and Ball-Valve Cut-off to keep the workplace clean; The machine suitable for lot kinds of package size and powdery material through changing the screw.
